Open Welding Head_Orbital Welding Machine_Products

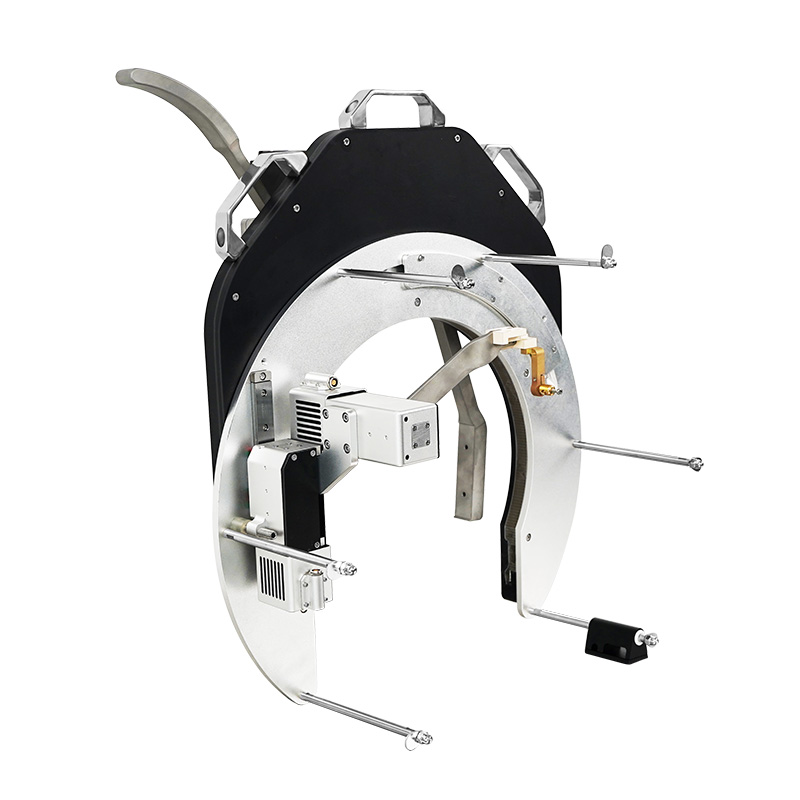

Open Welding Head

The open welding gun is equipped with an automatic speed measurement feedback system, a haval fixture, easy and quick installation, and a hand control box. It can achieve full-position tube-to-tube/tube-to-sheet precision welding, with high welding result reproducibility and ideal effect.

Optional welding head: K-76/K-114/K-168/K-219/K-273/K-325

The welding gun is water-cooled and has a high duty cycle. It can work stably and reliably for a long time without heating.

The arc length and sway function are used to automatically adjust the welding arc length to meet the welding requirements of pipes of different sizes and ensure welding quality.

Get a Quote

Essential Details

Model	k-76	k-114	k-168	k-219	k-273	k-325
Pipe diameter/mm	19-76	25-114	60-168	89-219	168-273	168-325
Torch size/mm	259247253	328350385	328350432	328350432	349564683	600480328
Torch weight	4.5kg	7.8kg	11kg	19kg	20kg	25kg
Welding speed	0.8-8rpm
Bevel	v	v	v/u	v/u	v/u	v/u
Silk disc(kg)	1/5/15
