Hand Held Laser Welding Machine

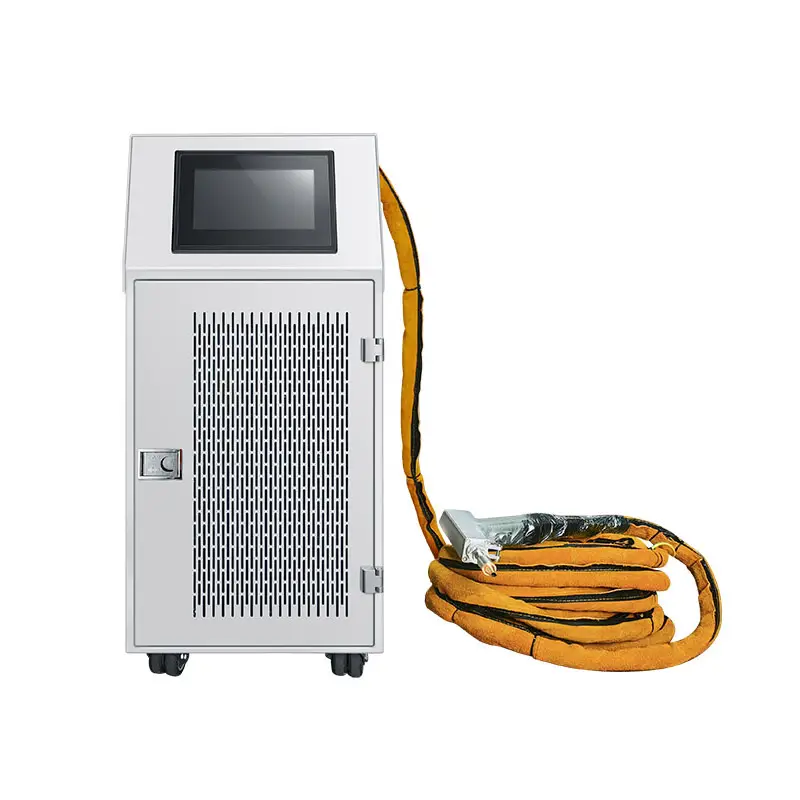

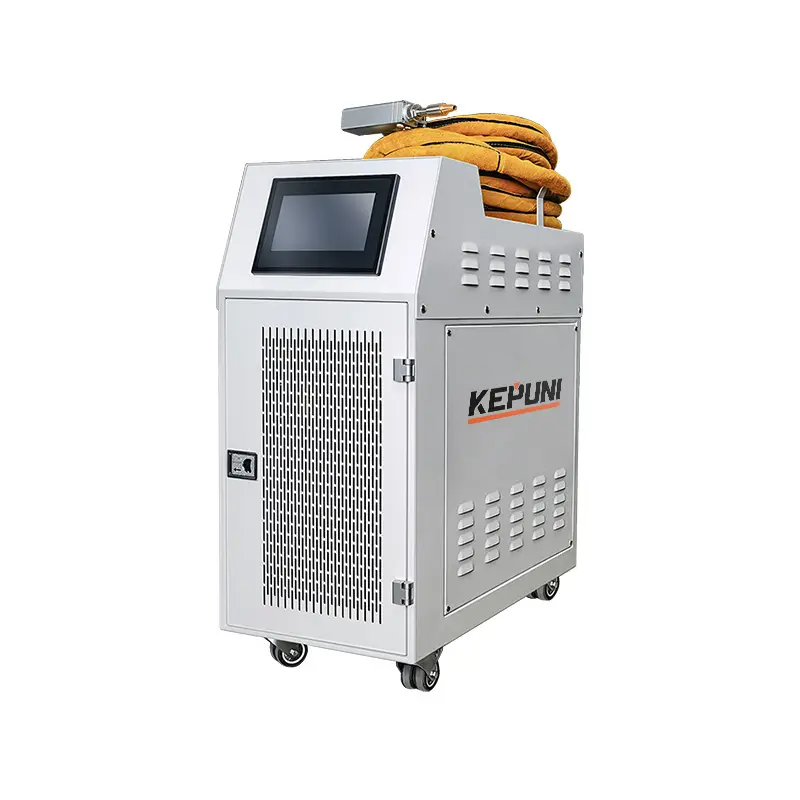

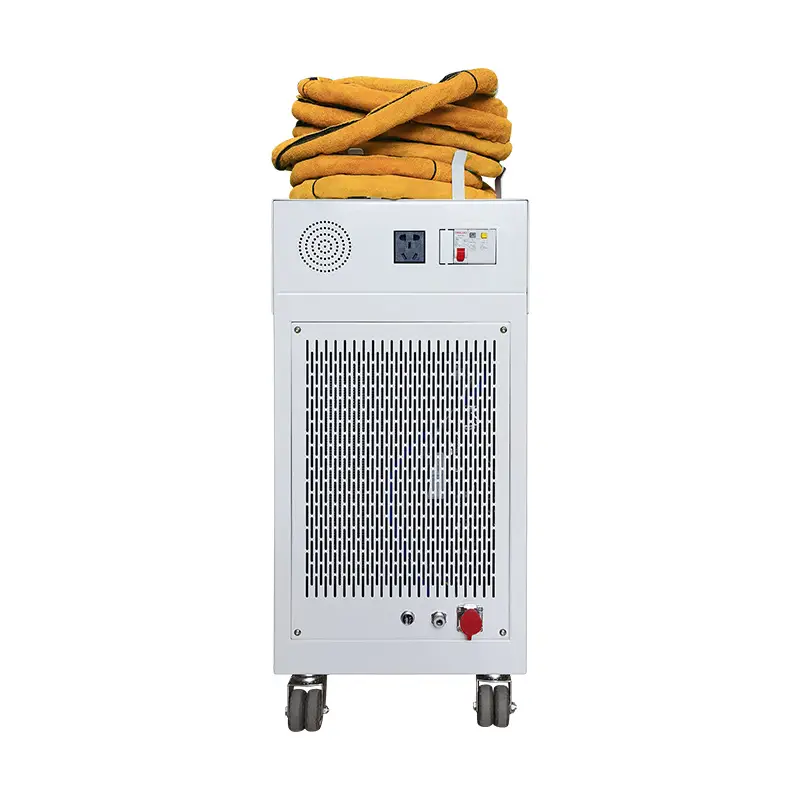

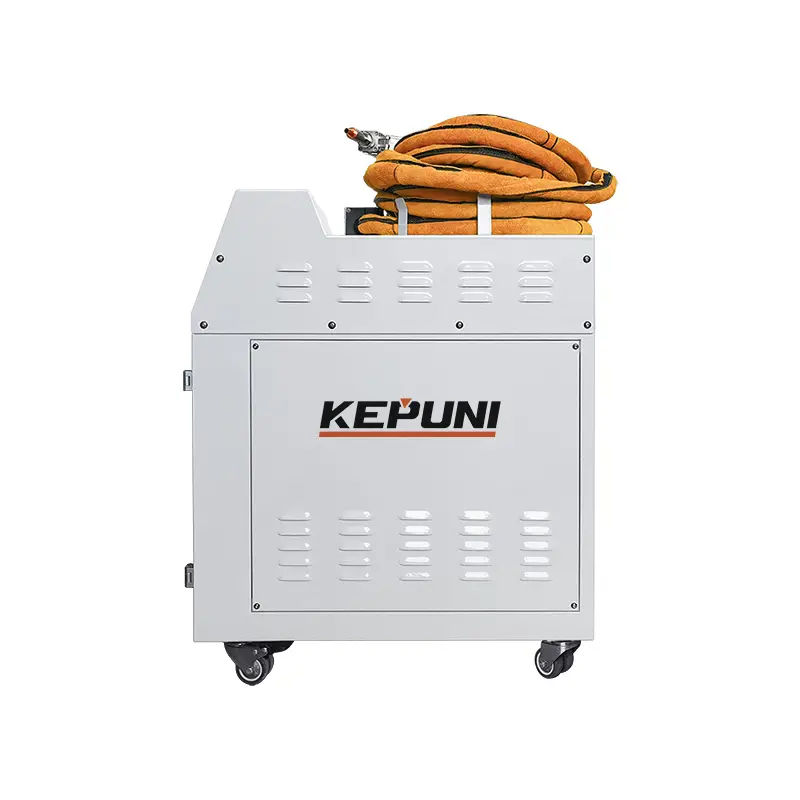

Air-cooled Portable Laser Welding Machine
The air-cooled portable laser welding machine provided by KEPUNI reduces size of the handheld laser welding machine, and the built-in air-cooling heat dissipation system makes the handheld laser welding machine more portable and occupies a smaller workplace. No preheating required, ready to use. Air-cooled heat dissipation, it can also operated normally under low temperature environment.
Easy operation: 0 basics novices can use it quickly, and it produces high-quality welding seam.
Ultra-long optical fiber: 10 meters ultra-long optical fiber to meet different welding scenarios.
CNC wire feeder: Don't bother to control, let the welding wire help you complete the welding work.
Related Products
Essential Details
ModelKEPUNI-1000KEPUNI-1500
Rated output power1000W1500W
Power regulation range10%-100%10%-100%
Output methodContinuous/PulseContinuous/Pulse
Maximum modulation frequency20kHz20-50kHz
Power instability≤2%≤2%
Fiber optic output interfaceQBHQBH
Fiber length10m10m
Fiber optic core14um25um
Welding gun typeLeft and right swing mirror welding joint
Whole machine power<6kw<7kw
Wire feeding diameter0.8, 1.0, 1.2, 1.6
Weight gun weight0.7kg
Size(mm)510*353*340
Product weight105kg115kg
Working environment temperature10~40℃
Working environment humidity<70%
Working voltageSingle-phase 220VAC±50HZ
